Alignment

This tool aligns a steel element on the extremities of 2 other steel elements.

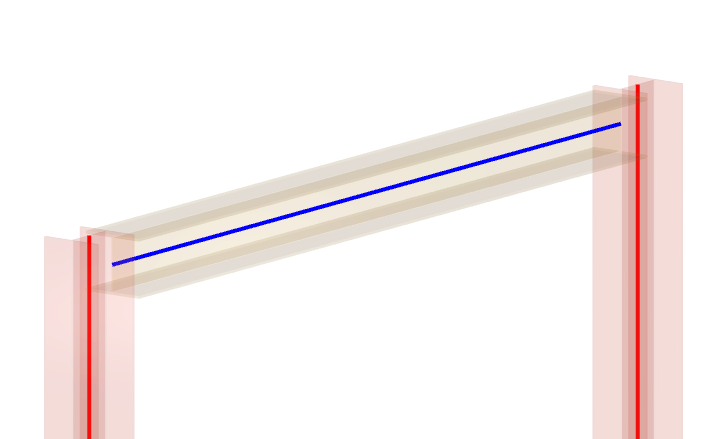

1. Select the 2 steel elements as reference points.

2. Select the steel element that have to be aligned.

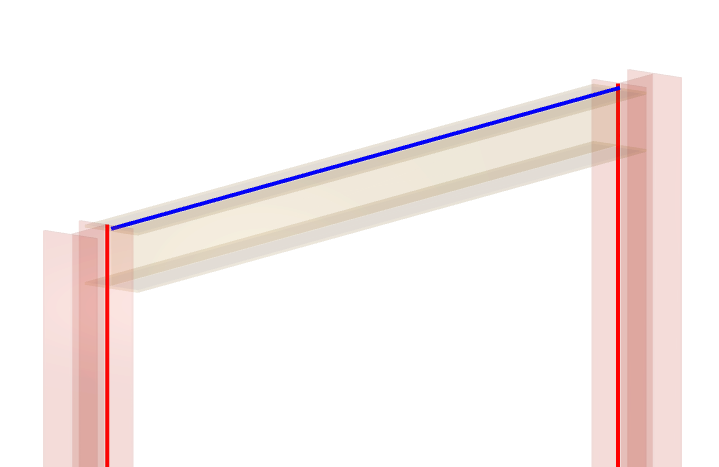

Steel element will be aligned and stretched to the nearest extremities of the ‘reference’ steel elements.

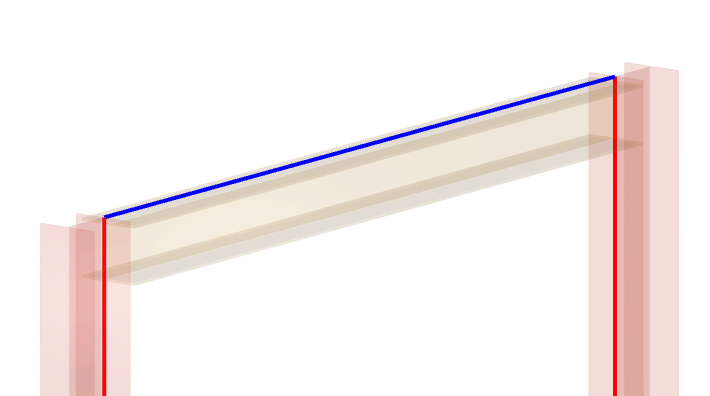

3. Valid the preview with ENTER.

The alignment process is made according to the axes of the steel element: they must be set up appropriately.
